F700GS (K70) | Instruments Dash

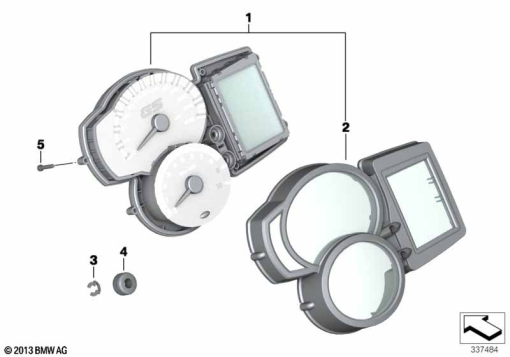

INSTRUMENT CLUSTER
Diagram #62_0639 | 6 parts
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 8 535 811 | INSTRUMENT CLUSTER - MPH | 1 | |
| 1 | 62 11 8 535 810 | INSTRUMENT CLUSTER - KM/H | 1 | |
| 2 | 62 11 7 712 824 | INSTRUMENTS COMBINATION COVERING | 1 | |
| 3 | 07 12 9 909 733 | SECURING CLIP - ZNNIV SW | 1 | |
| 4 | 46 63 1 233 200 | RUBBER GROMMET | 1 | |
| 5 | 62 11 7 693 137 | TORX BOLT - 30X16 | 1 |
