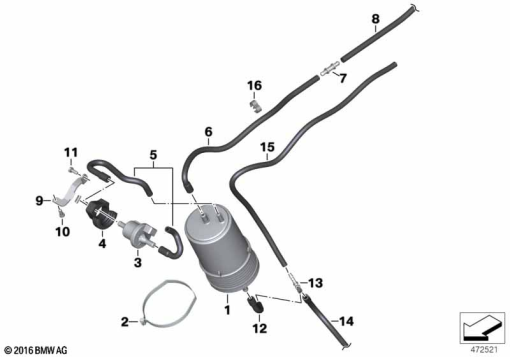

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 8 557 626 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 16 13 1 465 035 | CABLE TIE | - | |
| 3 | 13 90 1 465 030 | FUEL TANK BREATHER VALVE | - | |
| 4 | 13 90 1 734 443 | BRACKET VENTILATION VALVE | - | |
| 5 | 16 13 7 716 643 | SET: SET HOSE PIPE | - | |
| 6 | 16 13 8 532 273 | HOSE LINE - L=370MM | - | |
| 7 | 61 66 1 382 908 | CONNECTION PIECE | - | |
| 8 | 11 74 7 797 115 | HOSE RUNNING METER - 4,5X9MM (meter) | - | |
| 9 | 13 90 7 700 811 | BRACKET VENTILATION VALVE | - | |
| 10 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 11 | 16 13 7 704 563 | OVAL HEAD SCREW - M5X14-10.9-ZNS3 | - | |
| 12 | 16 13 7 699 445 | HOSE LINE | - | |
| 13 | 16 13 7 728 992 | ADAPTER, 3-PIN | - | |
| 14 | 16 13 7 728 038 | BULK MATERIAL, FUEL HOSE - 4,5X9MM (meter) | - | |
| 15 | 16 13 7 728 038 | BULK MATERIAL, FUEL HOSE - 4,5X9MM (meter) | - |
