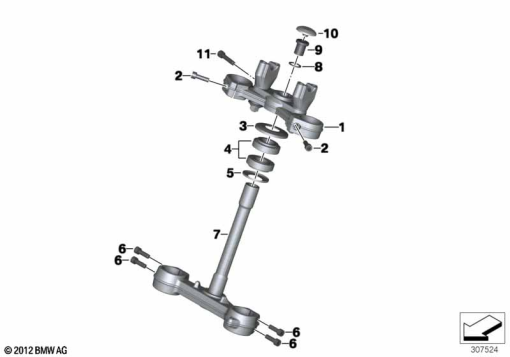

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 566 590 | FORK BRACE, COMPLETE, UPPER | - | |
| 2 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 3 | 31 42 7 692 248 | 0.02 | - | |
| 4 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | - | |
31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16Alternative for position 4 | - | ||
| 5 | 31 42 1 234 509 | RING | - | |
| 6 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 7 | 31 42 7 711 469 | LOWER FORK CROSS BRACE | - | |
31 42 8 566 584 | LOWER FORK CROSS BRACEAlternative for position 7 | - | ||
| 8 | 31 42 7 658 261 | WASHER | - | |
| 9 | 31 42 7 658 563 | ADJUSTING SCREW | - | |
| 10 | 31 42 7 668 189 | COVERING CAP | - | |
| 11 | 07 12 9 904 704 | ISA SCREW - M8X40-8.8-ZNS3 | - |
