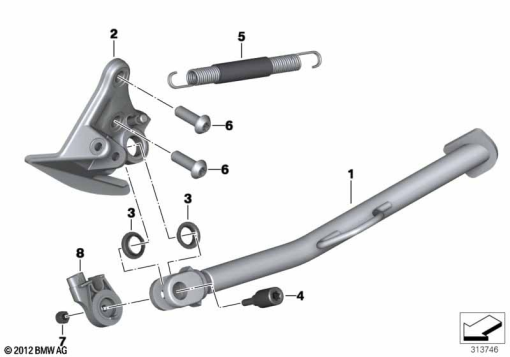

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 8 522 384 | SIDE STAND | - | |
46 53 8 522 378 | SIDE STANDAlternative for position 1 | - | ||
| 2 | 46 53 8 528 633 | SUPPORTING BRACKET F SIDE STAND | - | |
| 3 | 46 53 7 679 105 | COLLAR BUSH | - | |
| 4 | 46 53 8 545 011 | SIDE-SUPPORT SCREW | - | |
| 5 | 46 53 7 715 118 | SPRING WITH GROMMET | - | |
| 6 | 46 53 8 541 983 | OVAL HEAD SCREW - M10X30-8.8-MK | - | |
| 7 | 07 12 9 904 882 | HEX NUT - M6-8-ZNS3 | - | |
| 8 | 61 31 8 388 642 | SWITCH, KICKSTAND | - |
