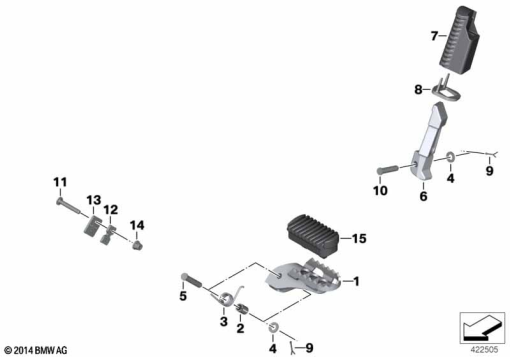

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 701 199 | FOOTREST, LEFT | - | |
46 71 7 701 200 | FOOTREST, RIGHTAlternative for position 1 | - | ||
| 2 | 46 71 1 242 019 | SPACER TUBE | - | |
| 3 | 46 71 7 673 821 | RETAINER SPRING | - | |
| 4 | 07 11 9 906 667 | WASHER - D=8MM | - | |
| 5 | 46 71 7 717 830 | PIN - D=8MM/L=45MM | - | |
46 71 7 717 832 | PIN - D=8MM/L=41MMAlternative for position 5 | - | ||
| 6 | 46 71 7 705 653 | FOOTREST, REAR LEFT | - | |
46 71 7 705 654 | FOOTREST, REAR RIGHTAlternative for position 6 | - | ||
| 7 | 46 71 7 664 225 | FOOTREST RUBBER | - | |
| 8 | 46 71 7 716 151 | THRUST WASHER, LEFT | - | |
46 71 7 716 152 | THRUST WASHER, RIGHTAlternative for position 8 | - | ||
| 9 | 07 11 9 905 230 | SPLIT PIN - 2X16 | - | |
| 10 | 46 71 7 717 831 | PIN - D=8MM/L=36MM | - | |
| 11 | 63 12 7 699 141 | FILLISTER HEAD SCREW - M6X40-A2-70 | - | |
| 12 | 46 71 7 708 009 | SHIM FOR TWO FOOT PEGS, FRONT RIGHT | - | |
| 13 | 46 71 7 708 008 | SHIM FOR FOOT PEG, FRONT RIGHT | - | |
| 14 | 07 11 9 905 128 | HEX NUT - M6-8-ZNS3 | - | |
| 15 | 46 71 7 712 957 | FOOTREST RUBBER | - |
