F700GS (K70) | Exhaust System
EXHAUST SYSTEM PARTS WITH MOUNTS

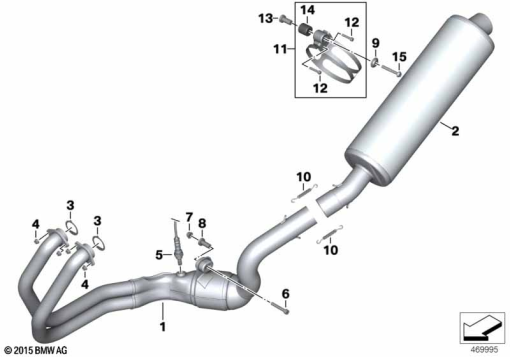

Diagram #18_1028 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 11 7 679 347 | EXHAUST MANIFOLD WITH CATALYST | - | |
| 2 | 18 21 7 672 804 | EXHAUST SEAL | - | |
| 4 | 18 21 7 676 551 | SECURING NUT - M7 | - | |
| - | 18 12 7 679 350 | REAR MUFFLER | - | |
| - | 18 21 7 672 804 | EXHAUST SEAL | - | |
| 4 | 18 21 7 676 551 | SECURING NUT - M7 | - | |
| 5 | 11 78 7 718 140 | OXYGEN SENSOR | - | |
| 6 | 07 11 9 907 850 | ASA BOLT WITH WASHER - M8X50-U1-8.8 | - | |
07 12 9 906 677 | ASA-BoltAlternative for position 6 | - | ||
| 7 | 07 11 9 905 977 | HEX NUT WIHT FLANGE - M8-8-ZNNIV SI | - | |
| 8 | 18 12 7 673 764 | SPACER SLEEVE | - | |
| 9 | 18 12 7 688 981 | WASHER - 28X8,2X10 | - | |
| 10 | 18 11 7 690 266 | SPRING | - | |
| 11 | 18 12 7 698 065 | BRACKET EXHAUST | - | |
| 12 | 18 12 7 711 990 | TORX SCREW - M6X31-A2-70 | - | |
| 13 | 18 12 7 722 139 | SPACER SLEEVE | - | |
| 14 | 18 21 1 342 283 | RUBBER MOUNTING | - | |
| 15 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
