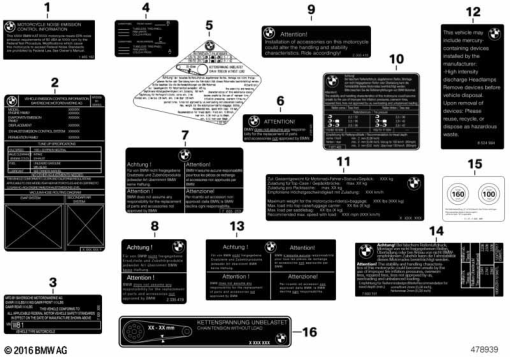

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 22 8 544 672 | INSTRUCTION NOTICE "US NOISE REGS." - USA (08/12 to 08/13) | - | |
71 22 8 556 492 | LABEL "NOISE INSTRUCTION" - USA (08/14 to 08/15)Alternative for position 1 | - | ||
71 22 8 562 437 | LABEL "NOISE INSTRUCTION" - USA (from 08/15)Alternative for position 1 | - | ||
| 2 | 71 22 8 556 582 | LABEL "EMISSION CONTROL INFORMATION" - USA (08/14 to 08/15) | - | |
71 22 8 562 557 | LABEL "EMISSION CONTROL INFORMATION" - USA (from 08/15)Alternative for position 2 | - | ||
71 22 8 556 583 | LABEL "EMISSION CONTROL INFORMATION" - USA (08/14 to 08/15)Alternative for position 2 | - | ||
71 22 8 562 558 | LABEL "EMISSION CONTROL INFORMATION" - USA (from 08/15)Alternative for position 2 | - | ||
| 3 | 71 24 8 535 182 | TYPE PLATE - USA | - | |
71 24 8 535 183 | TYPE PLATE - USAAlternative for position 3 | - | ||
| 4 | 71 24 8 532 037 | LABEL "TIRES" - USA / CANADA | - | |
71 24 8 532 039 | LABEL "TIRES" - USA / CANADAAlternative for position 4 | - | ||
| 8 | 71 21 2 335 419 | LABEL "ORIGINAL BMW TEILE" - GER / ENG | - | |
| 9 | 71 21 2 335 418 | LABEL "WARRANTY" - ENG | - | |
| 11 | 71 24 7 705 029 | INSTRUCTION NOTICE, PAYLOAD - GER / ENG | - | |
71 24 7 716 129 | INSTRUCTION NOTICE, PAYLOAD - GER / ENGAlternative for position 11 | - | ||
| 16 | 71 22 7 715 482 | NOTICE LABEL, CHAIN TENSION - 30-40MM | - | |
71 22 7 715 507 | NOTICE LABEL, CHAIN TENSION - 20-30MMAlternative for position 16 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
