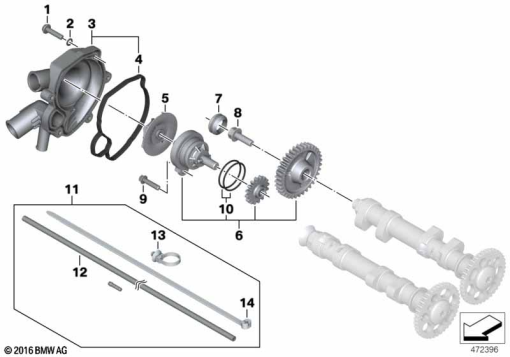

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 2 | 11 14 2 343 240 | GASKET RING - A6X10 | - | |
| 3 | 11 51 8 531 284 | WATER PUMP HOUSING, BLACK (from 02/12) | - | |
| 4 | 11 51 8 524 996 | PROFILE-GASKET | - | |
| 5 | 11 51 7 690 484 | ROTOR | - | |
| 6 | 11 51 7 724 452 | WATER PUMP | - | |
| 7 | 11 51 7 690 488 | GASKET | - | |
| 8 | 11 51 8 534 041 | SCREW WITH WASHER - M8X25-10.9 | - | |
| 9 | 23 00 7 690 404 | HEXAGON BOLT WITH INSIDE TORX - M6X16-8.8 | - | |
| 10 | 11 51 7 690 492 | O-RING - 34X2 | - | |
| 11 | 11 51 8 545 396 | SET: SET, DRAINAGE LINE | - | |
| 12 | 11 74 7 797 115 | HOSE RUNNING METER - 4,5X9MM (meter) | - | |
| 13 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | - | |
| 14 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - |
