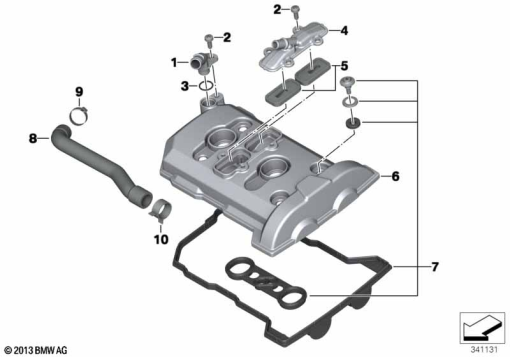

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 689 562 | UNION - ENTLÜFTUNG | - | |
11 12 7 689 563 | O-RING - 16X2Alternative for position 1 | - | ||
| 2 | 11 12 7 689 564 | TORX BOLT, SELF-THREADING - M6X16 | - | |
| 3 | 11 12 7 689 563 | O-RING - 16X2 | - | |
| 6 | 11 12 7 708 064 | CYLINDER HEAD COVER BLACK | - | |
| - | 11 12 8 520 621 | SET: GASKET SET, CYLINDER HEAD COVER | - | |
| 7 | 11 12 8 520 621 | SET: GASKET SET, CYLINDER HEAD COVER | - | |
| - | 11 51 7 690 488 | GASKET | - | |
| 8 | 11 15 7 679 328 | VENT HOSE | - | |
| 9 | 61 68 1 386 662 | HOSE CLAMP - D=24MM | - | |
| 10 | 64 21 6 924 276 | SPRING RING SHELL - A25X12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
