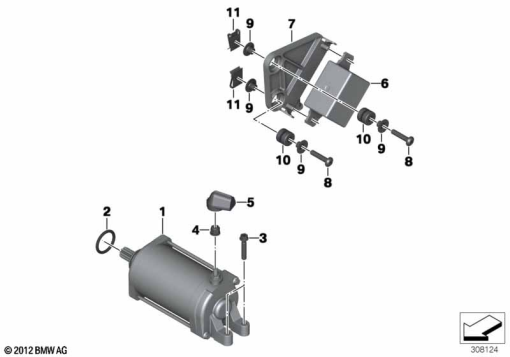

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 44 7 709 449 | STARTER, BLACK | 1 | |
| 2 | 12 41 2 343 252 | O-RING - 24,4X3,1 | 1 | |
| 3 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | 1 | |
| 4 | 07 12 9 905 542 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | 1 | |
| 5 | 61 13 7 704 173 | PROTECTION CAP | 1 | |
| 6 | 61 36 8 354 778 | STARTER RELAY | 1 | |
| 7 | 61 13 8 522 348 | BRACKET FOR STARTER RELAY | 1 | |
| 8 | 63 12 7 680 859 | FILLISTER HEAD SCREW - M6X30-A2-80 | 1 | |
| 9 | 63 12 7 727 887 | COLLAR BUSH - 18X6,1X8-ZNNIV | 1 | |
| 10 | 46 63 7 688 792 | GROMMET | 1 | |
| 11 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | 1 | |
| 12 | 63 12 7 680 859 | FILLISTER HEAD SCREW - M6X30-A2-80 | 1 |
