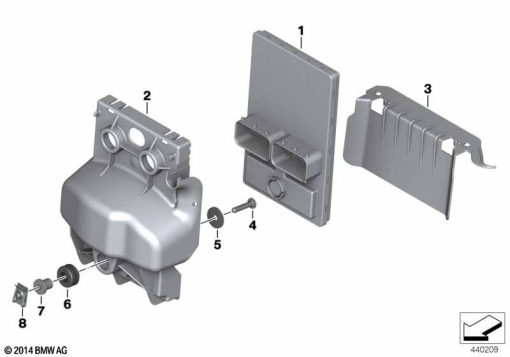

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 35 8 394 896 | CENTRAL CHASSIS ELECTRONICS - 17-07-500 | - | |
61 35 8 394 839 | CENTRAL CHASSIS ELECTRONICS - 17-07-500Alternative for position 1 | - | ||
| 2 | 61 35 8 522 349 | BRACKET, CONTROL UNIT | - | |
| 3 | 61 35 7 705 024 | ABSCHOTTUNG - ZFE | - | |
| 4 | 63 12 7 680 859 | FILLISTER HEAD SCREW - M6X30-A2-80 | - | |
| 5 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - | |
| 6 | 31 42 1 232 245 | RUBBER GROMMET | - | |
| 7 | 61 35 7 707 360 | COLLAR BUSH | - | |
| 8 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | - |
