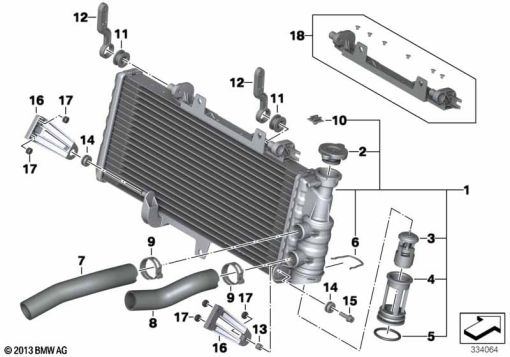

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 7 678 284 | RADIATOR | - | |
| 2 | 17 11 7 695 769 | COVER LID - 1,2 BAR | - | |
| 3 | 17 11 1 464 985 | THERMOSTAT | - | |
| 4 | 17 11 7 692 439 | COVER, THERMOSTAT HOUSING | - | |
| - | 17 11 1 464 984 | O-RING - 36X4 | - | |
| 5 | 17 11 1 464 984 | O-RING - 36X4 | - | |
| 6 | 17 11 7 679 296 | SPRING CLIP | - | |
| 7 | 17 12 7 701 024 | HOSE, INLET | - | |
| 8 | 17 12 7 701 025 | RETURN HOSE | - | |
| 9 | 17 12 7 696 320 | SPRING RING SHELL - D=32 | - | |
| 10 | 61 13 1 378 997 | BRACKET, PLUG CONNECTION WHITE | - | |
| 11 | 13 71 2 343 569 | RUBBER GROMMET - 18X8MM | - | |
| 12 | 17 11 7 702 123 | BRACKET UPPER | - | |
| 13 | 46 71 7 676 553 | BUSH | - | |
| 15 | 07 12 9 903 979 | TORX SCREW - M6X20-U1-8.8 | - | |
| 16 | 17 11 7 698 305 | BRACKET, RADIATOR BOTTOM LEFT | - | |
17 11 7 700 857 | BRACKET, RADIATOR BOTTOM RIGHTAlternative for position 16 | - | ||
| 17 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 18 | 17 11 7 709 754 | SET: REPAIR KIT FOR RADIATOR BRACKET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
