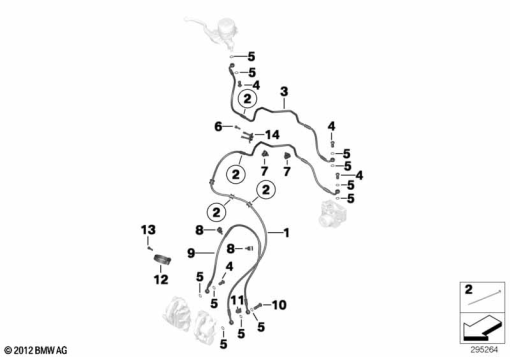

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 537 726 | BRAKE CIRCUIT PIPE, FRONT | - | |
| 2 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 3 | 34 32 8 537 727 | BRAKE LINE GROUP, CONTROL CIRCUIT, FRONT | - | |
| 4 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 5 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 6 | 07 12 9 905 385 | ISA SCREW - M6X15 ZNNIV SI | - | |
| 7 | 34 32 7 727 425 | BRACKET, BRAKE PIPE, DOUBLE | - | |
| 8 | 46 71 7 685 598 | TUBING SUPPORT - D10 | - | |
| 9 | 34 32 7 700 782 | BRAKE HOSE FRONT | - | |
| 10 | 34 32 9 445 088 | DOUBLE BANJO BOLT - M10X1 | - | |
| 11 | 34 32 7 706 009 | SPACER HOLDER | - | |
| 12 | 34 32 7 704 577 | MOUNTING CLAMP FOR BRAKE HOSE | - | |
| 13 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | - |
