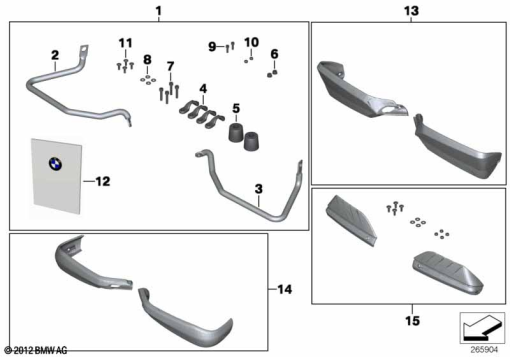

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 32 8 532 948 | SET: SET OF HAND GUARDS | 1 | |
| 2 | 77 32 8 528 280 | TUBULAR CURVED HAND GUARD, RIGHT | 1 | |
| 3 | 77 32 8 528 279 | TUBULAR CURVED HAND GUARD, LEFT | 1 | |
| 4 | 71 60 7 714 663 | PIPE CLAMP | 1 | |
| 5 | 77 32 8 523 760 | HANDLEBAR VIBRATION ABSORBER | 1 | |
| 6 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 7 | 07 12 9 907 373 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 8 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | 1 | |
| 9 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 | 1 | |
| 10 | 07 12 9 905 778 | HEX NUT - M5-A2-70 | 1 | |
| 11 | 46 63 7 657 650 | FILLISTER HEAD SCREW - M5X14 | 1 | |
| 12 | 77 01 8 523 784 | INSTALLATION GUIDE FOR HAND GUARD BAR | 1 | |
| 13 | 71 60 7 715 135 | SET: SET OF HAND PROTECTORS, LARGE | 1 | |
| 14 | 71 60 7 705 963 | SET: SET HAND GUARD, SMALL | 1 | |
| 15 | 71 60 7 705 964 | SET: SET OF MOUNT. HAND GUARDS, LARGE | 1 | |
| – | 71 60 7 715 135 | SET: SET OF HAND PROTECTORS, LARGE | 1 |
