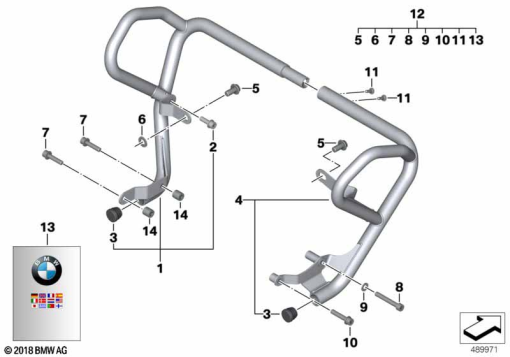

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 14 8 405 683 | LEFT ENGINE PROTECTION BAR | - | |
| 2 | 07 12 9 906 138 | ISA SCREW - M8X25-U1-8.8 | - | |
| 3 | 71 60 7 713 031 | PLUG | - | |
| 4 | 77 14 8 405 684 | RIGHT ENGINE PROTECTION BAR | - | |
| 5 | 07 12 9 908 598 | FILLISTER-HEAD SCREW - M10X25-10.9-MK | - | |
| 7 | 07 12 9 909 298 | ISA SCREW - M8X40-10.9-MK | - | |
| 8 | 07 12 9 909 400 | INTERNAL TORX SCREW WITH WASHER - M8X55-U1-10.9 | - | |
| 10 | 07 12 9 909 298 | ISA SCREW - M8X40-10.9-MK | - | |
| 11 | 46 61 7 713 314 | FILLISTER HEAD SCREW - M5X14-A2-80-MK | - | |
| 12 | 77 14 8 567 703 | SET: SET ATTACHMENT PARTS SAFETY BAR | - | |
| 14 | 46 63 8 549 084 | BUSH - H=15MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
