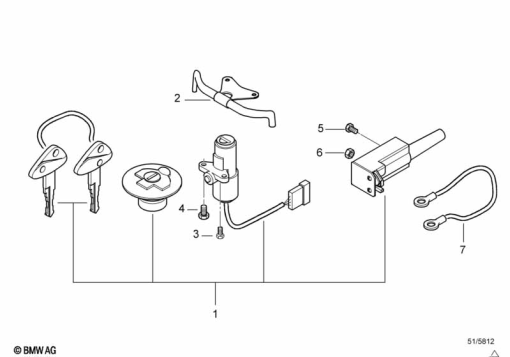

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 2 328 485 | SET OF LOCKS | 1 | |
| 2 | 51 25 2 346 162 | COVER | 1 | |
| 3 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 | 1 | |
| 4 | 51 25 2 346 145 | FRACTURE BOLT - M8X16 | 1 | |
| 5 | 51 25 2 346 146 | SCREW - M6X35 | 1 | |
| 6 | 63 14 2 346 469 | HEX NUT - M6 | 1 | |
| 7 | 46 62 2 346 050 | ROPE | 1 |
