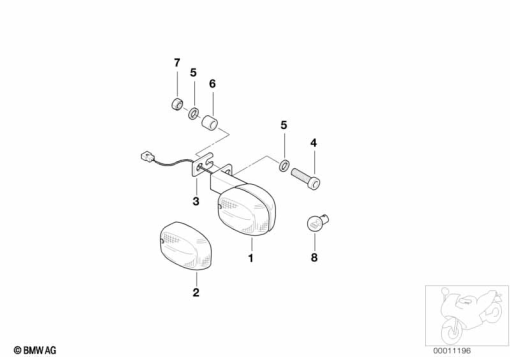

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 2 346 534 | FRONT LEFT TURN INDICATOR | - | |
63 13 2 346 533 | FRONT RIGHT TURN INDICATORAlternative for position 1 | - | ||
| 2 | 63 23 2 346 501 | TURN INDICATOR GLASS | - | |
| 3 | 63 13 2 346 314 | HOLDER - FRONT | - | |
63 13 2 346 315 | HOLDER - BACKAlternative for position 3 | - | ||
| 4 | 63 23 2 346 498 | FILLISTER-HEAD SCREW - M6X20 8.8 ZNFE | - | |
| 5 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | - | |
| 6 | 63 23 2 346 472 | BUSH | - | |
| 7 | 63 14 2 346 469 | HEX NUT - M6 | - | |
| 8 | 07 11 9 905 337 | BULB - 12V 10W | - |
