F650 Funduro (E169) | Front Suspension

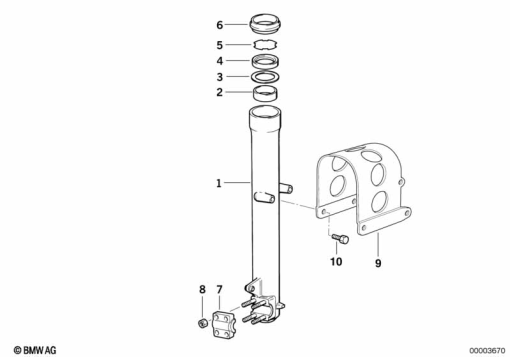

TELESCOPE FORK SLIDE TUBE
Diagram #31_0344 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 2 345 377 | SLIDER TUBE LEFT | 1 | |
| 1 | 31 42 2 345 378 | SLIDER TUBE RIGHT | 1 | |
| 2 | 31 42 2 312 705 | GUIDE BUSH | 1 | |
| 3 | 31 42 2 312 839 | SHIM | 1 | |
| 4 | 31 42 2 312 838 | GASKET RING | 1 | |
| 5 | 31 42 2 312 837 | SUPPORTING RING | 1 | |
| 6 | 31 42 2 312 836 | 0.04 | 1 | |
| 7 | 31 42 2 345 387 | SUPPORTING BRACKET | 1 | |
| 8 | 31 42 2 345 388 | HEX NUT - M6 | 1 | |
| 9 | 46 61 2 346 046 | REINFORCEMENT | 1 | |
| 10 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | 1 |
