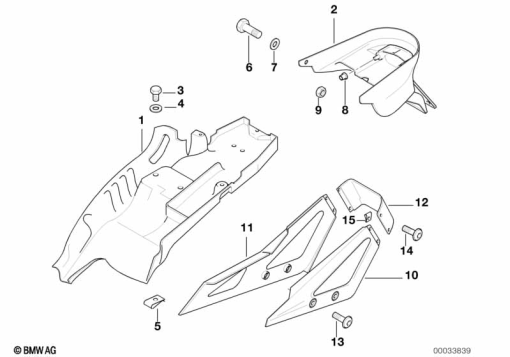

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 346 256 | REAR WHEEL COVER - BLACK | 1 | |
| 2 | 46 62 2 346 010 | REGISTRATION PLATE MOUNTING - BLACK | 1 | |
| 2 | 46 62 2 346 368 | REGISTRATION PLATE MOUNTING - BLACK | 1 | |
| 3 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | 1 | |
| 4 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 5 | 17 11 2 345 061 | BODY NUT - M6 | 1 | |
| 6 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | 1 | |
| 7 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 8 | 46 62 2 345 559 | RUBBER MOUNTING | 1 | |
| 9 | 63 14 2 346 469 | HEX NUT - M6 | 1 | |
| 10 | 46 62 2 346 307 | BRACKET LEFT - BLACK | 1 | |
| 11 | 46 62 2 346 308 | BRACKET RIGHT - BLACK | 1 | |
| 12 | 46 62 2 346 305 | WHEEL COVER - BLACK | 1 | |
| 13 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | 1 | |
| 14 | 46 62 2 345 490 | SCREW - M5X16 | 1 | |
| 15 | 16 11 2 345 079 | BODY NUT - M5 | 1 |
