F650 Funduro (E169) | Frame, Fairing, Cases

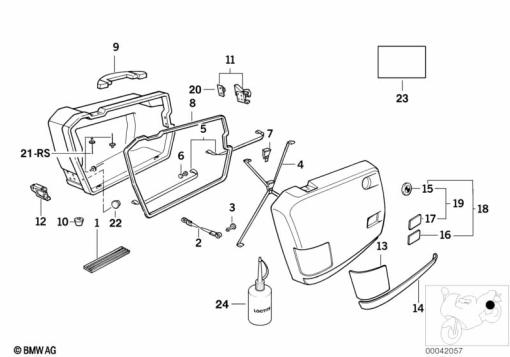

INTEGRAL CASE SINGLE PARTS
Diagram #46_0209 | 28 parts | 5 available in shop
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 300 039 | HINGE | 1 | |
| 2 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | 1 | |
| 3 | 51 16 1 828 956 | 0.01 | 1 | |
| 4 | 46 54 2 315 754 | RUBBER BAND - 335 MM | 1 | |
| 5 | 46 54 2 315 753 | RUBBER BAND - 230MM | 1 | |
| 6 | 46 54 2 315 755 | AXLE | 1 | |
| 7 | 46 54 2 315 756 | HOOK | 1 | |
| 8 | 46 54 2 316 391 | GASKET LEFT | 1 | |
| 8 | 46 54 2 316 392 | GASKET RIGHT | 1 | |
| 9 | 46 54 2 315 073 | HANDLE | 1 | |
| 10 | 46 54 2 300 044 | SET: PAD | 1 | |
| 11 | 46 54 2 303 640 | CASE CATCH | 1 | |
| 12 | 46 54 2 303 652 | CASE SUSPENSION CATCH | 1 | |
| 13 | 46 54 2 315 055 | IMPACT PROTECTION - LEFT | 1 | |
| 13 | 46 54 2 315 056 | IMPACT PROTECTION - RIGHT | 1 | |
| 14 | 46 54 2 315 057 | IMPACT PROTECTION - LEFT | 1 | |
| 14 | 46 54 2 315 058 | IMPACT PROTECTION - RIGHT | 1 | |
| 15 | 46 54 2 300 045 | BADGE | 1 | |
| 16 | 46 54 2 300 046 | EMBLEM - TOURING | 1 | |
| 17 | 46 54 2 300 134 | REAR REFLECTOR YELLOW | 1 | |
| 17 | 63 14 8 529 372 | REAR REFLECTOR RED | 1 | |
| 18 | 46 54 9 056 968 | SET: INSTALLING SIDE MARKING LIGHT - TOURING | 1 | |
| 19 | 46 54 9 056 970 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | 1 | |
| 19 | 46 54 9 056 969 | SET: INSTALLING SIDE MARKING LIGHT - RED | 1 | |
| 20 | 46 54 2 303 642 | HOOK | 1 | |
| 21 | 46 54 2 316 689 | SET: SET OF COVER RIVETS | 1 | |
| 21 | 46 54 2 316 690 | SET: SET OF BOTTOM PART RIVETS | 1 | |
| 22 | 46 54 2 316 434 | PUSH-BUTTON INNER PART | 1 |
