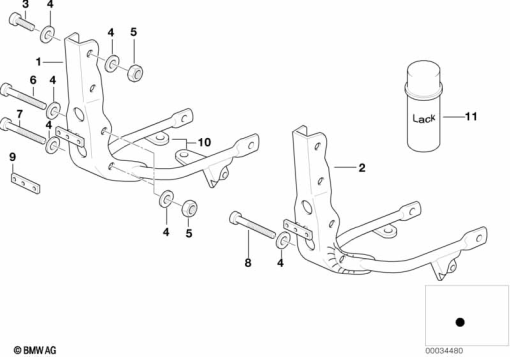

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 51 2 345 640 | ENGINE SUPPORT REINFORCED | - | |
| 3 | 07 12 9 905 074 | ISA SCREW - M10X65 | - | |
| 4 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 5 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | - | |
| 6 | 07 11 9 906 725 | FILLISTER-HEAD SCREW - M10X95-8.8 | - | |
| 8 | 46 51 2 345 698 | FILLISTER-HEAD SCREW - M10X130 8.8 ZNS | - | |
| 9 | 46 51 2 345 260 | HOLDER | - | |
| 10 | 46 51 2 345 585 | SET: HOLDER | - | |
| 11 | 51 91 1 240 868 | SPRAY SILVER - 131 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
