F650 Funduro (E169) | Frame, Fairing, Cases

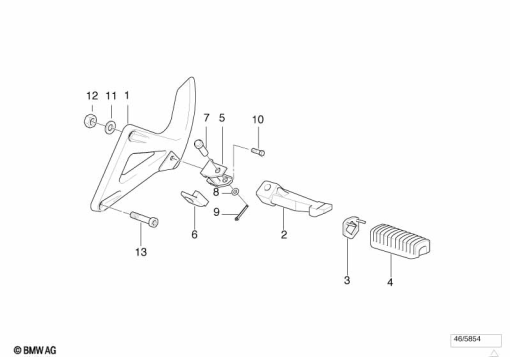

FOOTPEG PLATE/REAR FOOTPEG
Diagram #46_0257 | 16 parts | 3 available in shop
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 345 251 | FOOTREST PLATE, LEFT | 1 | |
| 1 | 46 71 2 345 252 | FOOTPEG PLATE RIGHT | 1 | |
| 2 | 46 71 2 310 403 | FOOTREST, REAR LEFT | 1 | |
| 2 | 46 71 2 310 404 | FOOTREST, REAR RIGHT | 1 | |
| 3 | 46 71 7 687 107 | THRUST WASHER, LEFT | 1 | |
| 3 | 46 71 7 687 108 | THRUST WASHER, RIGHT | 1 | |
| 4 | 46 71 2 310 401 | FOOTREST RUBBER | 1 | |
| 5 | 46 71 1 457 390 | SUPPORTING BRACKET | 1 | |
| 6 | 46 71 1 457 392 | STOPPER | 1 | |
| 7 | 46 71 2 345 557 | 0.03 | 1 | |
| 8 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 9 | 07 11 9 900 533 | SPLIT PIN | 1 | |
| 10 | 07 11 9 913 843 | HEX BOLT - M10X35 | 1 | |
| 11 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | 1 | |
| 12 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 13 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | 1 |
