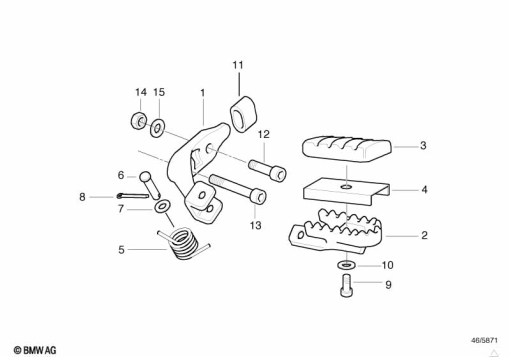

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 345 265 | FOOTREST PLATE, LEFT | 1 | |
| 1 | 46 71 2 345 266 | FOOTPEG PLATE RIGHT | 1 | |
| 2 | 46 71 2 345 267 | FOOTREST, LEFT | 1 | |
| 2 | 46 71 2 345 268 | FOOTREST, RIGHT | 1 | |
| 3 | 46 71 2 345 250 | BUSHING | 1 | |
| 4 | 46 71 2 345 269 | HOLDER | 1 | |
| 5 | 46 51 2 345 264 | SPRING | 1 | |
| 6 | 46 71 2 345 270 | 0.04 | 1 | |
| 7 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 8 | 07 11 9 900 533 | SPLIT PIN | 1 | |
| 9 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 | |
| 10 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 11 | 46 71 2 345 271 | STOPPER | 1 | |
| 12 | 07 12 9 904 159 | FILLISTER HEAD SCREW - M10X35-8.8-ZNS3 | 1 | |
| 13 | 07 11 9 901 107 | FILLISTER-HEAD SCREW - M10X60-8.8 | 1 | |
| 14 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 15 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 |
