F650 Funduro (E169) | Frame, Fairing, Cases
CENTER STAND

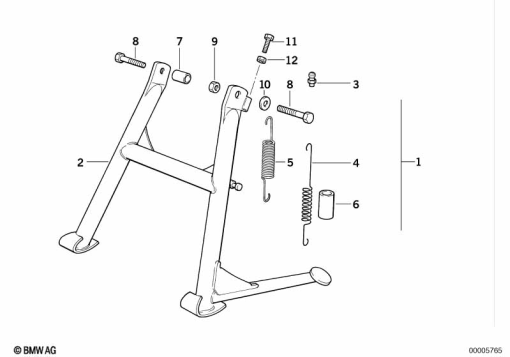

Diagram #46_0267 | 12 parts | 2 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 52 2 345 455 | CENTER STAND | 1 | |
| 2 | 71 60 2 317 458 | CENTER STAND - KURZ | 1 | |
| 3 | 23 41 1 238 306 | NIPPLE | 1 | |
| 4 | 46 53 2 345 275 | TENSION SPRING | 1 | |
| 5 | 46 52 2 345 456 | TENSION SPRING | 1 | |
| 6 | 46 52 2 345 457 | COVER | 1 | |
| 7 | 46 52 2 345 458 | BUSH | 1 | |
| 8 | 46 52 2 345 459 | HEX BOLT - M10X50-8.8 | 1 | |
| 9 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 10 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 11 | 07 11 9 906 181 | HEX BOLT - M8X25-8.8-ZNNIV | 1 | |
| 12 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 |
