F650 Funduro (E169) | Engine
LUBRICATION SYST., PIPES

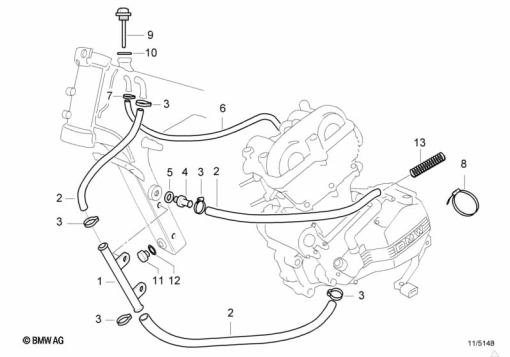

Diagram #11_1864 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 2 345 021 | OIL PIPE | 1 | |
| 2 | 11 41 2 345 165 | HOSE - 10X18X1600 | 1 | |
| 3 | 11 41 2 345 067 | HOSE CLAMP - 17,5X8,6 | 1 | |
| 4 | 11 42 2 345 020 | OIL STRAINER | 1 | |
| 5 | 11 41 2 345 129 | O-RING - 21,82 X 3,53 | 1 | |
| 6 | 11 41 2 345 156 | HOSE - 6X12X1000 (meter) | 1 | |
| 7 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 9 | 46 51 2 345 529 | DIPSTICK | 1 | |
| 10 | 11 41 2 345 022 | O-RING - 26,75X3,53 | 1 | |
| 11 | 46 51 2 345 499 | FLANGE SCREW - M8X20 | 1 | |
| 12 | 46 51 2 345 500 | GASKET RING - 8X16X1,5 | 1 | |
| 13 | 11 41 2 345 137 | SPRING | 1 |
