F650 Funduro (E169) | Engine

CYLINDER WITH PISTON

Diagram #11_1854 | 4 parts

100%

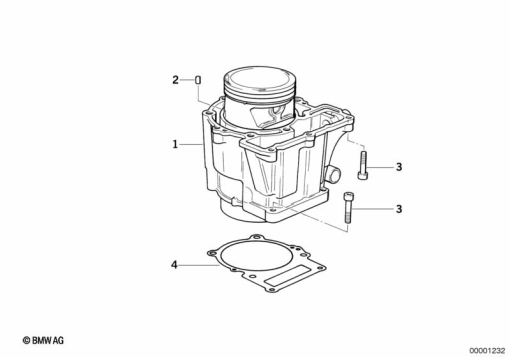

F650 Funduro (E169) CYLINDER WITH PISTON exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 11 2 343 446
SET: CYLINDER WITH PISTON - O. BOLZEN/RING1
2
11 11 2 343 223
PIN - 5X101
3
07 12 9 905 386
ISA SCREW - M6X30-8.8-ZNNIV1
4
11 11 7 706 497
CYLINDER BASE GASKET1
