F650 Funduro (E169) | Electrical System
PLUG-IN SOCKET

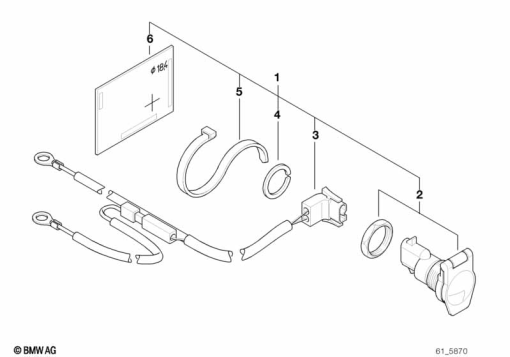

Diagram #61_0278 | 5 parts | 1 available in shop
100%
Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 2 319 167 | SET: RETROFIT KIT, SOCKET | 1 | |
| 2 | 61 13 1 391 630 | PLUG-IN SOCKET | 1 | |
| 3 | 46 54 2 316 600 | SET: WIRING PLUG TERMINAL | 1 | |
| 4 | 61 13 2 305 290 | SHIM | 1 | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
