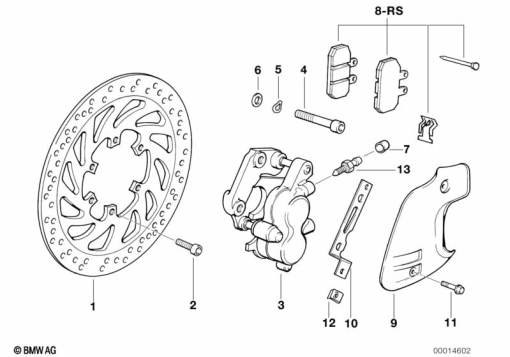

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 345 323 | BRAKE ROTOR, FRONT | 1 | |
| 2 | 07 11 9 906 172 | FILLISTER-HEAD SCREW - M6X14-8.8 | 1 | |
| 3 | 34 11 2 345 319 | BRAKE CALIPER | 1 | |
| 4 | 34 11 2 345 491 | INNER HEX BOLT - M10X45 | 1 | |
| 5 | 34 11 2 345 492 | WAVE WASHER - B10-ZNS | 1 | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 7 | 34 21 1 236 794 | DUST CAP | 1 | |
| 8 | 34 11 2 345 445 | SET: REPAIR KIT, BRAKE PADS | 1 | |
| 8 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 9 | 34 11 2 345 325 | AIR DUCT | 1 | |
| 10 | 34 11 2 345 324 | CARRIER | 1 | |
| 11 | 46 62 2 345 490 | SCREW - M5X16 | 1 | |
| 12 | 16 11 2 345 079 | BODY NUT - M5 | 1 | |
| 13 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | 1 |
