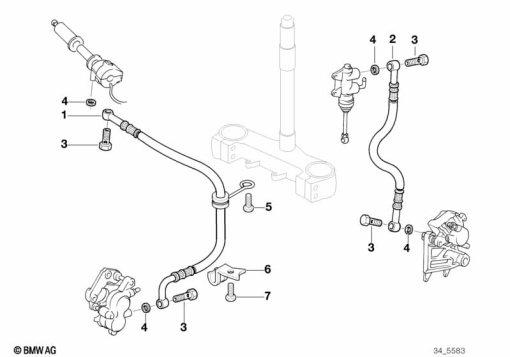

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 345 322 | BRAKE HOSE | 1 | |
| 2 | 34 32 2 345 315 | BRAKE HOSE | 1 | |
| 3 | 34 32 1 242 205 | HOLLOW BOLT | 1 | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 5 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | 1 | |
| 6 | 46 61 2 346 068 | 0.01 | 1 | |
| 7 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | 1 |
