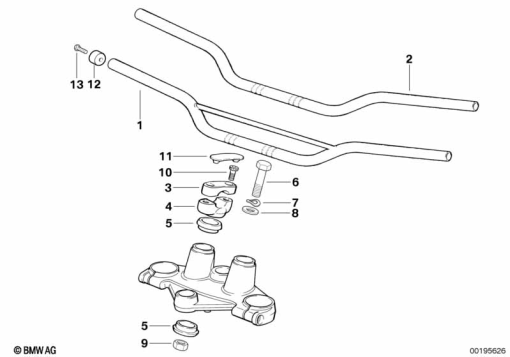

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 32 71 2 345 641 | HEATED HANDLE AT HANDLE-BAR | - | |
| 3 | 32 71 2 345 291 | CLAMPING SUPPORT, TOP | - | |
| 4 | 32 71 2 345 292 | CLAMPING SUPPORT, BOTTOM | - | |
| 5 | 31 42 2 345 293 | RUBBER MOUNTING | - | |
| 6 | 07 11 9 900 525 | HEX BOLT - M10X80 | - | |
| 7 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 8 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 9 | 07 11 9 900 531 | HEX NUT - M10-05-ZNS | - | |
| 10 | 07 11 9 901 025 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNS | - | |
| 11 | 31 42 2 345 288 | COVERING CAP | - | |
| 12 | 32 71 2 346 036 | HANDLEBAR VIBRATION ABSORBER | - | |
| 13 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - |
