F650ST (E169) | Rear Axle & Suspension

CHAIN DRIVE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

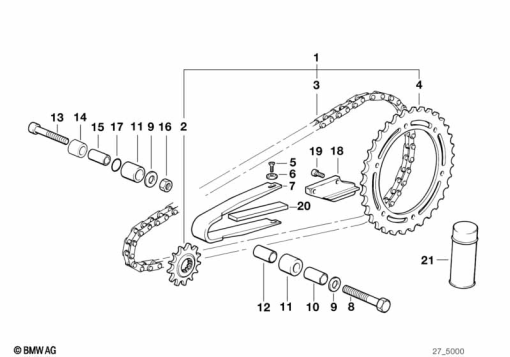

Diagram #33_1640 | 24 parts

100%

Parts List (24)

#	Part Number	Description	Qty
1	27 71 2 345 694	SET: SPROCKET WHEEL SET WITH CHAIN	-
2	23 00 2 343 191	CHAIN PINION - 16 Z	-
-	23 00 2 343 192	LOCK RING	-
3	27 72 2 345 586	CHAIN	-
4	27 71 2 345 857	CHAIN PINION - Z=47	-
5	07 11 9 902 248	CSK.LENSHEAD SCREW - ST4,8X13 SWH-ZN	-
6	27 72 2 345 360	PLATE	-
7	27 72 2 345 359	SLIDE RAIL	-
8	26 11 2 345 365	HEX BOLT - M8X50	-
9	16 11 2 345 084	WASHER - 8,5X24X2	-
10	26 11 2 345 364	SPACER SLEEVE - 14,3X19,5X33	-
11	27 72 2 345 831	ROLL PIN	-
12	27 72 2 345 358	SPACER SLEEVE - 8,3X14X34	-
13	07 11 9 919 656	SOCKET HEAD CAP SCREW	-
	23 01 7 840 338	FILLISTER-HEAD SCREW - M8X80Alternative for position 13	-
14	27 72 2 345 362	SPACER SLEEVE - BLACK	-
15	27 72 2 345 363	SPACER SLEEVE	-
16	36 31 2 345 495	HEX NUT - M8	-
17	27 72 2 345 480	O-RING - D=13,95X2,62	-
18	27 72 2 345 650	COVER - BLACK	-
19	18 11 2 345 087	FLANGE SCREW - M6X16	-
20	27 72 2 345 567	SOUND ABSORBER	-
21	83105A6D0B5	CHAIN SPRAY - 300ML (to 09/00)	-
	83105B311D4	CHAIN SPRAY - 300MLAlternative for position 21	-
