F650ST (E169) | Fuel Supply

SECONDARY AIR SYSTEM

Diagram #16_0850 | 5 parts

100%

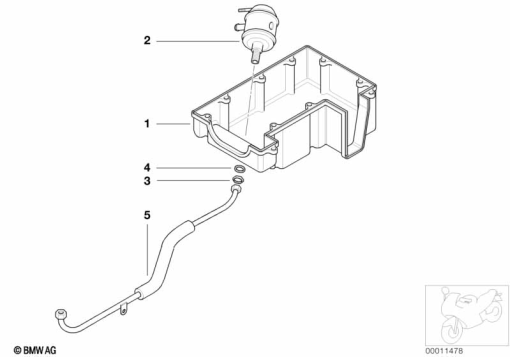

F650ST (E169) SECONDARY AIR SYSTEM exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
13 71 2 345 101
AIR CLEANER HOUSING BOTTOM - SLS1
2
11 73 1 337 449
VALVE - SLS1
3
07 11 9 901 307
HEX NUT - M16X1,5-04-ZNS1
4
07 11 9 963 252
GASKET RING - A16X20-AL1
5
11 71 2 345 171
TUBING1
