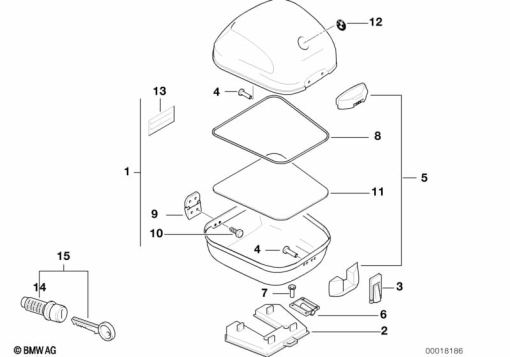

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 714 360 | SET: SET, TOPCASE WITH ADAPTER PLATE - 31 L | - | |
| 2 | 71 60 2 337 147 | ADAPTER PLATE | - | |
| 3 | 71 60 2 337 163 | CAP LOCK WITHOUT CYLINDER - TOP-CASE F650 | - | |
| 4 | 71 60 2 337 170 | SET: SET OF FITTINGS FOR COVER LOCK | - | |
| 5 | 71 60 7 714 358 | SET: SET, COVER FOR TOP/BOTTOM | - | |
| 6 | 71 60 2 337 182 | IMMOBILIZING LOCK WITHOUT CYLINDER | - | |
| 7 | 71 60 2 337 229 | SET: SET OF RIVETS FOR IMMO. LOCK A3.2X10 | - | |
| 8 | 71 60 2 337 169 | GASKET | - | |
| 9 | 71 60 2 337 168 | HINGE | - | |
| 10 | 71 60 2 337 172 | SET: SCREW | - | |
| 11 | 71 60 2 337 205 | COVERING INNER | - | |
| 12 | 52 53 2 325 201 | BADGE - D=45 | - | |
| 13 | 46 54 2 337 217 | INSTRUCTION NOTICE, PAYLOAD | - | |
71 60 2 337 206 | SIGN, MATERIAL IDENTIFIERAlternative for position 13 | - | ||
| 14 | 51 25 2 303 681 | LOCK (WITH KEY CODE) | - | |
51 25 2 316 739 | LOCK (WITH KEY CODE)Alternative for position 14 | - | ||
| 15 | 71 60 2 337 180 | SET: OF LOCKS W.KEY CODE - TOP-CASE F650 | - | |
46 54 2 303 694 | SET: SET OF LOCKSAlternative for position 15 | - | ||
51 25 2 303 680 | LOCK CYLINDER WITH KEYAlternative for position 15 | - |
