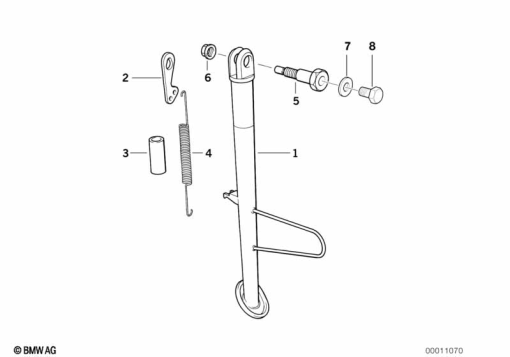

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 2 345 647 | SIDE STAND | - | |
46 53 2 337 030 | SIDE STAND - KURZAlternative for position 1 | - | ||
| 2 | 46 53 2 345 273 | BRACKET | - | |
| 3 | 46 53 2 345 274 | RUBBER GROMMET | - | |
| 4 | 46 53 2 345 275 | TENSION SPRING | - | |
46 53 2 337 048 | TENSION SPRINGAlternative for position 4 | - | ||
| 5 | 46 53 2 345 643 | SCREW | - | |
| 6 | 07 11 9 900 522 | HEX NUT - M10X1,25 | - | |
| 7 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 7 | - | ||
| 8 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | - |
