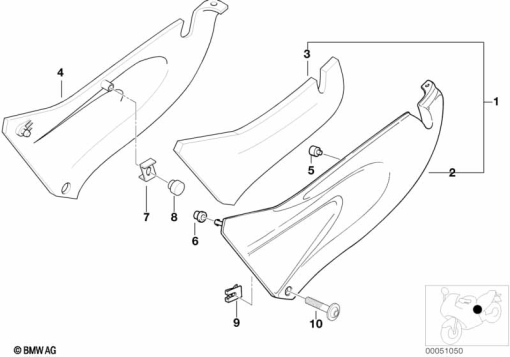

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 350 059 | COVERING LEFT - FLAMMROT | - | |
46 63 2 350 061 | COVERING LEFT - AURAWHITEAlternative for position 1 | - | ||
46 63 7 652 177 | COVERING LEFT - ORLANDOORANGEAlternative for position 1 | - | ||
46 63 7 652 179 | COVERING LEFT - MIDNIGHTBLUEAlternative for position 1 | - | ||
| 2 | 46 63 2 350 059 | COVERING LEFT - FLAMMROT | - | |
| - | 46 63 2 345 755 | SPACER HOLDER | - | |
| - | 46 63 2 350 056 | HEAT INSULATION | - | |
| - | 16 11 2 346 150 | PUSHROD SEAL | - | |
| 3 | 46 63 2 350 056 | HEAT INSULATION | - | |
| 4 | 46 63 2 346 096 | COVERING RIGHT - AURAWHITE | - | |
46 63 2 346 102 | COVERING RIGHT - FLAMMROTAlternative for position 4 | - | ||
46 63 2 346 292 | COVERING RIGHT - ORLANDOORANGEAlternative for position 4 | - | ||
46 63 2 346 294 | COVERING RIGHT - MIDNIGHTBLUEAlternative for position 4 | - | ||
| 5 | 46 63 2 346 084 | RUBBER BUFFER | - | |
| 6 | 46 63 2 346 142 | RUBBER GROMMET | - | |
| 7 | 46 63 2 345 755 | SPACER HOLDER | - | |
| 8 | 16 11 2 346 150 | PUSHROD SEAL | - | |
| 9 | 17 11 2 345 061 | BODY NUT - M6 | - | |
| 10 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | - |
