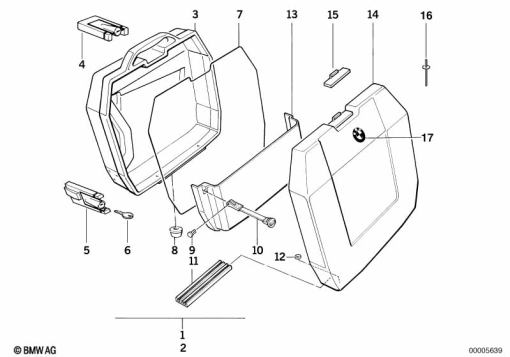

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 585 | SET: CITYCASE - BLACK | - | |
| 2 | 46 54 2 316 595 | CITYCASE LEFT - BLACK | - | |
46 54 2 316 596 | CITYCASE RIGHT - BLACKAlternative for position 2 | - | ||
| 3 | 46 54 2 316 683 | HOUSING BOTTOM LEFT | - | |
46 54 2 316 684 | HOUSING BOTTOM RIGHTAlternative for position 3 | - | ||
| 4 | 46 54 2 303 640 | CASE CATCH | - | |
| 5 | 46 54 2 303 652 | CASE SUSPENSION CATCH | - | |
| 7 | 46 54 2 300 042 | GASKET - 5X1560MM | - | |
| 8 | 46 54 2 300 044 | SET: PAD | - | |
| 9 | 51 16 1 828 956 | 0.01 | - | |
| 10 | 51 16 1 904 471 | JOINT LINK | - | |
| 11 | 46 54 2 300 039 | HINGE | - | |
| 12 | 07 11 9 936 410 | WASHER - 3,7 | - | |
| 14 | 46 54 2 316 682 | COVER - BLACK | - | |
| 15 | 46 54 2 303 642 | HOOK | - | |
| 16 | 46 54 2 316 691 | SET: SET OF BOTTOM PART RIVETS | - | |
46 54 2 316 692 | SET: SET OF COVER RIVETSAlternative for position 16 | - | ||
| 17 | 51 14 2 303 355 | BADGE - BMW | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
