F650ST (E169) | Frame, Fairing, Cases

LUGGAGE CARRIER

Diagram #46_0268 | 4 parts

100%

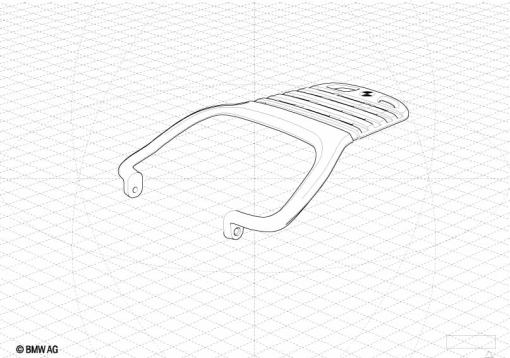

F650ST (E169) LUGGAGE CARRIER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 54 2 346 117
LUGGAGE CARRIER - SILVER1
2
52 53 2 346 161
COVERING, REAR - ANTHRAZIT1
3
07 11 9 919 930
FILLISTER-HEAD SCREW - M6X50-8.8-ZNS1
5
07 11 9 904 606
WASHER - 6-200 HV-ZNS31
