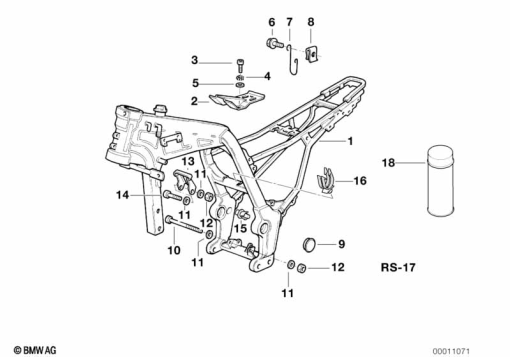

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 345 710 | FRAME | 1 | |
| 2 | 46 51 2 345 258 | HOLDER | 1 | |
| 3 | 07 11 9 901 034 | FILLISTER-HEAD SCREW - M8X50-8.8-ZNS3 | 1 | |
| 4 | 07 11 9 933 096 | SPRING WASHER - B8 | 1 | |
| 5 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 6 | 31 42 7 708 941 | COLLAR SCREW - M6 | 1 | |
| 7 | 46 51 2 345 116 | HOSE CLAMP | 1 | |
| 8 | 17 11 2 345 061 | BODY NUT - M6 | 1 | |
| 9 | 46 51 2 345 263 | COVER | 1 | |
| 10 | 07 11 9 900 527 | FILLISTER-HEAD SCREW - M10X115 | 1 | |
| 11 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 12 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 13 | 46 51 2 345 661 | HOLDER - ZYLINDERKOPF | 1 | |
| 14 | 07 12 9 905 074 | ISA SCREW - M10X65 | 1 | |
| 15 | 46 51 2 345 261 | CLAMP | 1 | |
| 16 | 46 51 2 345 593 | BRACKET/CABLE CLAMP | 1 | |
| 17 | 46 51 2 345 583 | SET: SET MOUNTING PARTS | 1 | |
| 18 | 51 91 1 240 868 | SPRAY SILVER - 131 | 1 |
