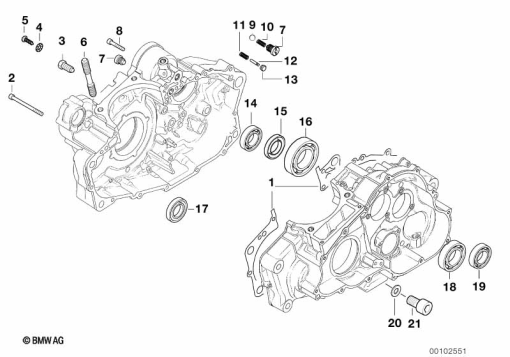

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 2 343 012 | GASKET | - | |
| 2 | 11 11 2 343 239 | FILLISTER-HEAD SCREW - M6X75 | - | |
| 3 | 11 11 2 343 476 | IDLE SWITCH | - | |
| 6 | 11 11 7 652 940 | STUD - M10X223 | - | |
| 7 | 11 11 2 343 006 | VALVE GUIDE | - | |
| 8 | 12 31 7 707 433 | HEXAGON BOLT WITH INSIDE TORX - M6X35-8.8 | - | |
| 9 | 11 11 2 343 224 | BALL - 8 | - | |
| 10 | 11 11 2 343 007 | SPRING, PRESSURE MAINTENANCE VALVE | - | |
| 11 | 11 11 2 343 011 | COMPRESSION SPRING | - | |
| 12 | 11 11 2 343 008 | 2.20 | - | |
| 13 | 11 11 2 343 009 | CONSTANT PRESSURE VALVE | - | |
| 14 | 11 11 7 700 322 | GROOVED BALL BEARING - 17X47X14 | - | |
| 15 | 11 11 2 343 019 | SHAFT SEAL, COMPENSATING SHAFT - 15X24X7 | - | |
| 16 | 11 11 7 658 345 | GROOVED BALL BEARING - 25X62X17 | - | |
| 17 | 11 11 2 343 018 | SHAFT SEAL, OUTPUT SHAFT - 25X40X7 | - | |
| 18 | 11 11 2 343 016 | GROOVED BALL BEARING - 25X52X15 | - | |
| 19 | 11 11 2 343 014 | GROOVED BALL BEARING - 17X47X14 | - | |
| 20 | 11 11 2 343 010 | GASKET RING - A8X13 | - | |
| 21 | 07 11 9 904 375 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNS3 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
