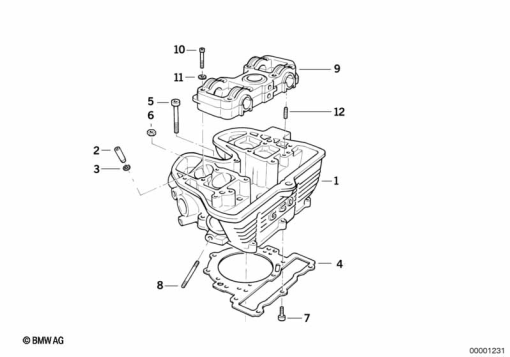

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 2 343 023 | CYLINDER HEAD | - | |
| 2 | 11 12 2 343 273 | VALVE GUIDE INLET | - | |
11 12 2 343 274 | VALVE GUIDE EXHAUSTAlternative for position 2 | - | ||
| 3 | 11 12 2 343 027 | SNAP RING - 11X1 | - | |
| 4 | 11 12 2 343 031 | CYLINDER HEAD GASKET | - | |
| 5 | 11 12 2 343 262 | COLLAR SCREW - M8X45 | - | |
| 6 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | - | |
| 7 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 8 | 11 12 2 343 030 | STUD BOLT - M8X58 | - | |
| 9 | 11 12 2 343 459 | SET: SUPPORTING BRACKET | - | |
| 10 | 07 11 9 920 123 | FILLISTER-HEAD SCREW - M6X45-8.8-ZNS | - | |
| 11 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 12 | 11 11 2 343 233 | ROLL PIN - M8X12 | - |
