F650ST (E169) | Electrical System

HORN

Diagram #61_0274 | 6 parts

100%

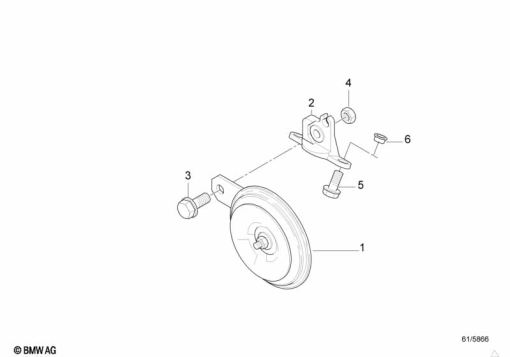

F650ST (E169) HORN exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
61 32 2 346 423
HORN1
2
61 33 2 346 403
HOLDER1
3
46 51 2 345 499
FLANGE SCREW - M8X201
4
36 31 2 345 495
HEX NUT - M81
5
13 71 2 343 300
HEX BOLT - M6X201
6
17 11 2 345 058
BUSH1
