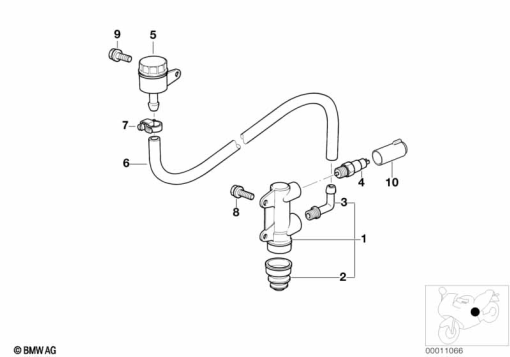

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 345 311 | BRAKE MASTER CYLINDER - D=11 | - | |
| 2 | 34 31 2 345 452 | DUST CAP | - | |
| 3 | 34 21 2 345 450 | HOSE CONNECTOR | - | |
| 5 | 34 21 2 345 313 | FLUID CONTAINER | - | |
| 6 | 34 32 2 345 316 | HOSE - 250MM | - | |
| 7 | 17 11 2 345 070 | HOSE CLAMP - D=10 | - | |
| 8 | 13 71 2 343 300 | HEX BOLT - M6X20 | - | |
| 9 | 31 42 7 708 941 | COLLAR SCREW - M6 | - | |
31 42 7 708 941 | COLLAR SCREW - M6Alternative for position 9 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
