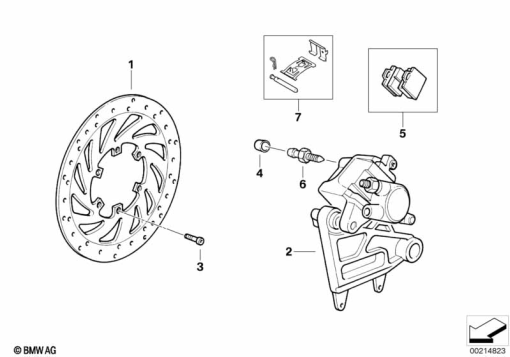

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 345 314 | REAR BRAKE DISC - D=240MM | - | |
| 2 | 34 21 2 345 312 | BRAKE CALIPER, REAR - D=34 | - | |
| 3 | 07 11 9 906 172 | FILLISTER-HEAD SCREW - M6X14-8.8 | - | |
| 4 | 34 21 1 236 794 | DUST CAP | - | |
| 5 | 34 21 2 345 449 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 5 | - | ||
| 6 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 7 | 34 21 8 529 920 | SET: KIT, ATTACHMENT PARTS, BRAKE LINING | - |
