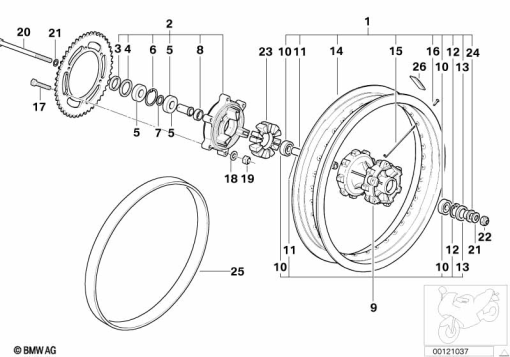

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 356 848 | REAR WHEEL - 3,00X17 | - | |
| 2 | 27 71 7 650 055 | SUPPORT SPROCKET | - | |
| 3 | 27 71 2 345 813 | SPACER SLEEVE, EXTERIOR | - | |
| 4 | 36 31 8 561 714 | SHAFT SEAL - AS30X40X7 | - | |
| 5 | 33 81 8 543 930 | GROOVED BALL BEARING - 6204-2RSH | - | |
| 6 | 07 11 9 906 808 | LOCK RING - 47X1,75 | - | |
| 7 | 27 71 7 655 483 | STOPPER | - | |
| 8 | 27 71 2 345 812 | SPACER SLEEVE, INTERIOR | - | |
| 9 | 36 31 7 650 054 | WHEEL HUB,REAR, COMPL., WITH BEARINGS | - | |
| 10 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 11 | 36 31 2 345 809 | SPACER SLEEVE, INTERIOR | - | |
| 12 | 07 11 9 906 782 | LOCK RING - 40X1,75-ZNS3 | - | |
| 13 | 36 31 8 561 714 | SHAFT SEAL - AS30X40X7 | - | |
| 14 | 36 31 2 345 806 | WHEEL RIM REAR - 3.00X17 | - | |
| 15 | 36 31 2 345 807 | SPOKE REART | - | |
| 16 | 36 31 2 345 808 | NIPPLE | - | |
| 17 | 07 11 9 905 549 | HEX BOLT - M8X40-ZNNIV SI | - | |
| 18 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 19 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 20 | 36 31 7 650 587 | AXLE SHAFT REAR | - | |
| 21 | 36 31 7 650 590 | WASHER - 17,5X34X4-ZNS3 | - | |
| 22 | 07 12 9 906 784 | HEX NUT - M16X1,5 | - | |
| 23 | 27 71 2 345 789 | ABSORBER | - | |
| 24 | 36 31 2 345 814 | SPACER SLEEVE, EXTERIOR | - | |
| 25 | 61 13 8 351 989 | FABRIC-TAPE - L=50M, B=30MM (meter) | - | |
| 26 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 26 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 26 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 26 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 26 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 26 | - |
