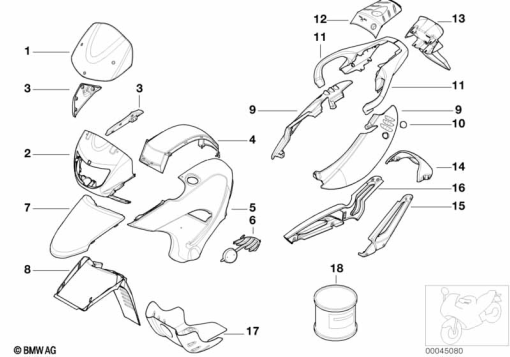

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 346 398 | SLIPSTREAM DEFLECTOR - SILVER | - | |
| 2 | 46 63 2 346 396 | COCKPIT TRIM PANEL - BLACK | - | |
| 3 | 46 63 2 345 733 | COVERING LEFT - SILVER | - | |
46 63 2 345 734 | COVERING RIGHT - SILVERAlternative for position 3 | - | ||
| 4 | 46 63 8 521 561 | COVERING FUEL TANK, PRIMED | - | |
| 5 | 46 63 8 521 557 | TRIM PANEL PRIME COATED LEFT | - | |
46 63 8 521 558 | TRIM PANEL PRIME COATED RIGHTAlternative for position 5 | - | ||
| 6 | 46 63 7 652 671 | GRID WITH PLAQUE SUPPORT, LEFT - GENARBT | - | |
46 63 7 652 672 | GRID WITH PLAQUE SUPPORT, RIGHT - GENARBTAlternative for position 6 | - | ||
| 7 | 46 61 8 521 554 | WHEEL COVER, PRIMED, FRONT | - | |
| 8 | 46 61 2 350 000 | MUDGUARD BOTTOM PART, FRONT WHEEL | - | |
| 9 | 46 63 8 521 563 | SIDE SECTION, PRIMED, REAR LEFT | - | |
46 63 8 521 564 | SIDE SECTION, PRIMED, REAR RIGHTAlternative for position 9 | - | ||
| 10 | 46 63 8 521 559 | PROTECTIVE CAP, PRIMED | - | |
| 11 | 46 54 2 346 381 | HANDLE WITH LUGGAGE SUPPORT LEFT - SILVER | - | |
46 54 2 346 382 | HANDLE WITH LUGGAGE SUPPORT RIGHT - SILVERAlternative for position 11 | - | ||
| 12 | 46 54 2 346 383 | COVER F LUGGAGE SUPPORT | - | |
| 13 | 46 62 7 680 450 | LICENSE PLATE HOLDER | - | |
| 14 | 46 62 2 346 386 | WHEEL COVER - BLACK | - | |
| 15 | 46 62 7 672 364 | BRACKET, WHEEL COVER, BOTTOM LEFT - BLACK | - | |
| 16 | 46 62 7 651 446 | BRACKET, WHEEL COVER, BOTTOM RIGHT - BLACK | - | |
| 17 | 51 47 7 655 605 | ALUMINUM CRASH BAR | - |
