F650GS 01-04 (R13) | Vehicle Trim

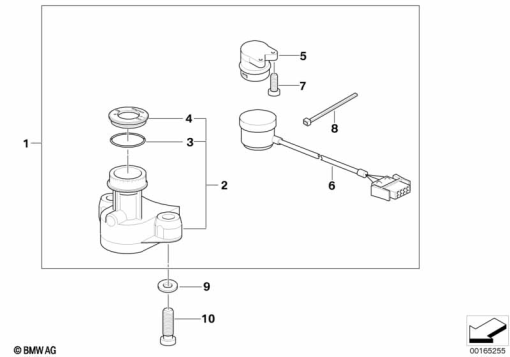

IGNITION SWITCH AND MOUNTING PARTS
Diagram #51_4140 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 7 698 141 | IGNITION LOCK WITH SWITCH | 1 | |
| 2 | 51 25 2 345 743 | STEERING LOCK HOUSING | 1 | |
| 3 | 51 25 2 313 185 | O-RING | 1 | |
| 4 | 51 25 2 313 184 | CAP (to 06/00) | 1 | |
| 4 | 51 25 7 650 987 | CAP (from 06/00) | 1 | |
| 5 | 61 31 2 346 569 | IGNITION/LIGHT SWITCH (from 06/00) | 1 | |
| 6 | 61 12 7 698 138 | ADAPTER LEAD, IGNITION AND LIGHT SWITCH | 1 | |
| 7 | 61 11 7 651 630 | SCREW - M3X20 | 1 | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 9 | 07 11 9 904 826 | WASHER - 8-200-ZNS3 | 1 | |
| 10 | 51 25 7 666 667 | SCREW - M8X20-MK | 1 |
