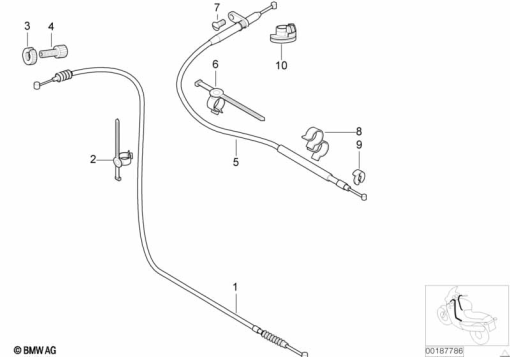

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 73 7 661 757 | CLUTCH CABLE | - | |
| 2 | 13 31 1 707 705 | HOSE CLAMP | - | |
| 3 | 32 72 7 678 101 | COUNTER NUT | - | |
| 4 | 32 72 7 678 100 | ADJUSTMENT SCREW, BOWDEN CABLE | - | |
| 5 | 32 73 2 343 552 | THROTTLE CABLE - L=1037MM | - | |
32 73 7 660 040 | THROTTLE CABLE - L=1047MMAlternative for position 5 | - | ||
| 6 | 16 13 1 465 119 | HOSE CLAMP | - | |
| 7 | 07 11 9 901 004 | PAN-HEAD SCREW, BLACK - M5X10 | - | |
| 8 | 13 90 1 720 201 | HOSE CLAMP | - | |
| 9 | 07 12 9 934 319 | CLAMPING PLATE - D=6MM | - | |
| 10 | 32 72 7 650 284 | CABLE ROLLER | - |
