F650GS 01-04 (R13) | Seat

DUALSEAT LOCKING MECHANISM

Diagram #52_2671 | 3 parts

100%

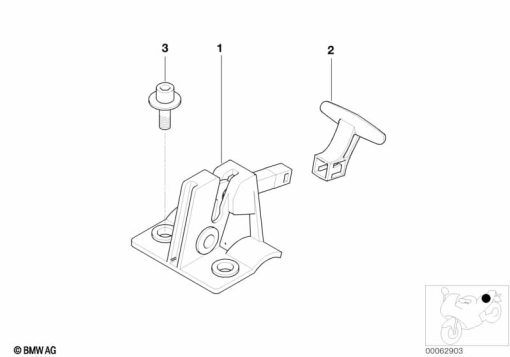

F650GS 01-04 (R13) DUALSEAT LOCKING MECHANISM exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
51 25 7 651 917
DUALSEAT LOCKING MECHANISM1
2
51 25 7 650 082
OPERATING LEVER1
3
07 12 9 902 771
FILLISTER-HEAD SCREW - M6X16-Z21
