F650GS 01-04 (R13) | Rear Axle & Suspension

REAR SWING ARM RADIUS ROD

Diagram #33_1050 | 4 parts

100%

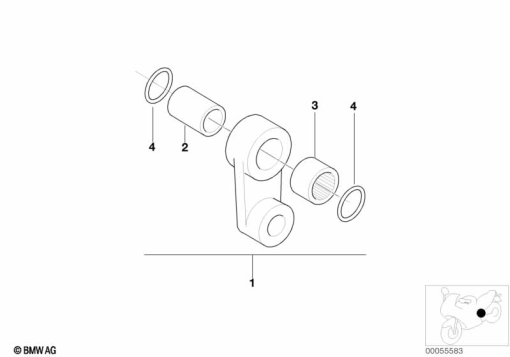

F650GS 01-04 (R13) REAR SWING ARM RADIUS ROD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
33 53 7 655 877
TENSION STRUT1
2
33 53 7 650 103
BUSHING - L=23MM1
3
33 53 7 650 095
NEEDLE SLEEVE - 18X24X121
4
33 53 7 650 096
GASKET RING - D=18X24X31
