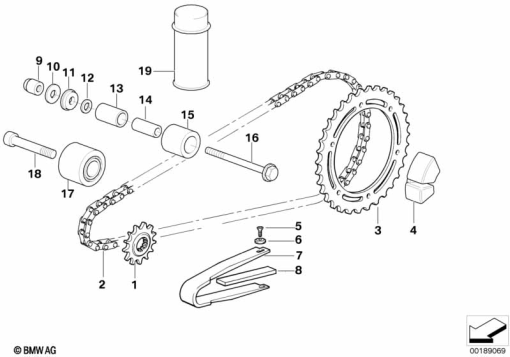

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 2 343 191 | CHAIN PINION - 16 Z | - | |
| 2 | 27 72 7 682 439 | CHAIN - 112 | - | |
| 3 | 27 71 2 345 857 | CHAIN PINION - Z=47 | - | |
| 4 | 27 71 2 345 789 | ABSORBER | - | |
| 5 | 07 11 9 904 185 | SHEET METAL SCREW - ST4,8X16 | - | |
| 6 | 27 72 2 345 835 | FIXING PIECE, CHAIN GUIDE | - | |
| 7 | 27 72 2 343 550 | SLIDE RAIL | - | |
| 8 | 27 00 8 529 962 | SOUND ABSORBER - 135X15X3 | - | |
| 9 | 51 16 2 328 287 | NUT - INBUSMUTTER M8 | - | |
| 10 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 11 | 27 72 7 650 285 | BUSH | - | |
| 12 | 07 11 9 904 164 | WASHER - 8,4X24X2-ZNS3 | - | |
| 13 | 27 72 2 345 833 | SPACER BUSH - 14X19.5X33 | - | |
| 14 | 27 72 2 345 832 | SPACER BUSH - 8.5X14X34 | - | |
| 15 | 27 72 2 345 831 | ROLL PIN | - | |
| 16 | 07 11 9 902 957 | HEX BOLT - M8X55-8.8 | - | |
| 19 | 83105A6D0B5 | CHAIN SPRAY - 300ML (to 12/15) | - | |
83105B311D4 | CHAIN SPRAY - 300MLAlternative for position 19 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
